直线导轨
|
型号
|

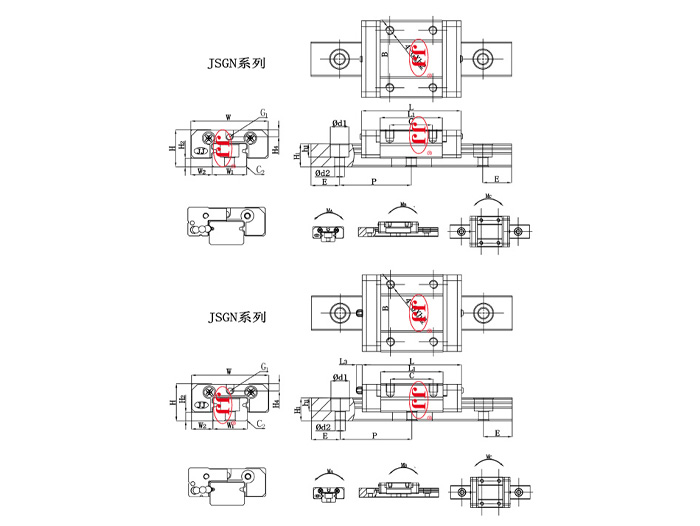

组合尺寸(mm)
|
导轨尺寸(mm)
|
导轨的安装螺栓尺寸
(mm)
|
滑块尺寸(mm)
|
基本额定动载荷
|
基本额定静载荷
|
扭矩
|
重量
|
库存
þ
|
| H |
H2 |
W2 |
W1 |
H1 |
d1Xd2Xh1 |
P |
E |
C2 |
W |
B |
B1 |
C |
L1 |
L |
L3 |
G1 |
GXh2 |
H4 |
C(KN) |
C0(KN) |
轴向MA
KN-m |
侧向MB
KN-m |
径向MC
KN-m |
滑块
kg |
导轨
kg/m |
|
JSGN3C
|
4
|
0.9
|
2.5
|
3
|
2.6
|
M1.6
|
10
|
3
|
0.3
|
M1.6
|
8
|
-
|
5
|
3.5
|
6.7
|
11.7
|
-
|
φ0.3
|
M1.6X1.1
|
0.7
|
0.19
|
0.31
|
0.6
|
0.4
|
0.4
|
0.9
|
53
|
X
|
|
JSGN3H
|
4
|
0.9
|
2.5
|
3
|
2.6
|
M1.6
|
10
|
3
|
0.3
|
M1.6
|
8
|
-
|
5
|
5.5
|
11
|
16
|
-
|
φ0.3
|
M1.6X1.1
|
0.7
|
0.29
|
0.58
|
0.9
|
1.1
|
1.1
|
1.2
|
53
|
X
|
|
JSGN5C
|
6
|
1.4
|
3.5
|
5
|
3.5
|
3.5X2.4X1
|
15
|
5
|
0.3
|
M2X6
|
12
|
-
|
6.5
|
-
|
10
|
16
|
-
|
φ0.7
|
M2X1.5
|
1.3
|
0.34
|
0.55
|
1.7
|
1
|
1
|
3.5
|
116
|
√
|
|
JSGN5H
|
6
|
1.4
|
3.5
|
5
|
3.5
|
3.5X2.4X1
|
15
|
5
|
0.3
|
M2X6
|
12
|
-
|
6.5
|
7
|
13.5
|
19.6
|
-
|
φ0.7
|
M2X1.5
|
1.3
|
0.47
|
0.9
|
2.4
|
2.1
|
2.1
|
4
|
116
|
√
|
|
JSGN7C
|
8
|
1.5
|
5
|
7
|
4.8
|
4.2X2.4X2.3
|
15
|
5
|
0.45
|
M2X6
|
17
|
25
|
9
|
8
|
14.3
|
22.5
|
-
|
φ1.2
|
M2X2.5
|
1.5
|
0.98
|
1.24
|
4.7
|
2.84
|
2.84
|
10
|
220
|
√
|
|
JSGN7H
|
8
|
1.5
|
5
|
7
|
4.8
|
4.2X2.4X2.3
|
15
|
5
|
0.45
|
M2X6
|
17
|
25
|
9
|
13
|
21.8
|
30.8
|
-
|
φ1.2
|
M2X2.5
|
1.5
|
1.37
|
1.96
|
7
|
4.8
|
4.8
|
15
|
220
|
√
|
|
JSGN9C
|
10
|
2
|
5.5
|
9
|
6.5
|
6X3.5X3.5
|
20
|
7.5
|
0.45
|
M3X8
|
20
|
25
|
9
|
10
|
18.9
|
28.9
|
-
|
φ1.4
|
M3X3
|
1.8
|
1.86
|
2.55
|
11.76
|
7.35
|
7.35
|
16
|
380
|
√
|
|
JSGN9H
|
10
|
2
|
5.5
|
9
|
6.5
|
6X3.5X3.5
|
20
|
7.5
|
0.45
|
M3X8
|
20
|
25
|
9
|
16
|
25.9
|
39.9
|
-
|
φ1.4
|
M3X3
|
1.8
|
2.55
|
4.02
|
19.6
|
18.62
|
18.62
|
26
|
380
|
√
|
|
JSGN12C
|
13
|
3
|
7.5
|
12
|
8
|
6X3.5X4.5
|
25
|
10
|
0.5
|
M3X8
|
27
|
35
|
10
|
15
|
21.7
|
34.7
|
-
|
φ2
|
M3X3.5
|
2.5
|
2.84
|
3.92
|
25.48
|
13.72
|
13.72
|
34
|
650
|
√
|
|
JSGN12H
|
13
|
3
|
7.5
|
12
|
8
|
6X3.5X4.5
|
25
|
10
|
0.5
|
M3X8
|
27
|
35
|
10
|
20
|
32.4
|
45.4
|
-
|
φ2
|
M3X3.5
|
2.5
|
3.72
|
5.88
|
38.22
|
36.26
|
36.26
|
54
|
650
|
√
|
|
JSGN15C
|
16
|
4
|
8.5
|
15
|
10
|
6X3.5X4.5
|
40
|
15
|
0.5
|
M3X10
|
32
|
34
|
12
|
20
|
26.7
|
42.1
|
4.5
|
M3
|
M3X4
|
3
|
4.61
|
5.59
|
45.08
|
21.56
|
21.56
|
59
|
1060
|
X
|
|
JSGN15H
|
16
|
4
|
8.5
|
15
|
10
|
6X3.5X4.5
|
40
|
15
|
0.5
|
M3X10
|
32
|
34
|
12
|
25
|
43.4
|
58.8
|
4.5
|
M3
|
M3X4
|
3
|
6.37
|
9.11
|
73.5
|
57.82
|
57.82
|
92
|
1060
|
X
|
|
JSGN20C
|
20
|
5
|
10
|
20
|
-
|
9.5X5.5X6
|
-
|
-
|
0.7
|
-
|
40
|
-
|
14
|
25
|
-
|
50
|
-
|
-
|
M4X6
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
X
|
|
JSGN20H
|
20
|
5
|
10
|
20
|
-
|
9.5X5.5X6
|
-
|
-
|
0.7
|
-
|
40
|
-
|
14
|
30
|
-
|
68
|
-
|
-
|
M4X6
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
X
|
|
JSGN25C
|
25
|
5
|
12.5
|
23
|
-
|
11X9X7
|
-
|
-
|
0.7
|
-
|
48
|
-
|
14
|
35
|
-
|
78
|
-
|
-
|
M6X7
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
X
|
|
JSGN25H
|
25
|
5
|
12.5
|
23
|
-
|
11X9X7
|
-
|
-
|
0.7
|
-
|
48
|
-
|
14
|
40
|
-
|
98
|
-
|
-
|
M6X7
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
X
|
华东1
