Ball Screws
|
Model No.
|

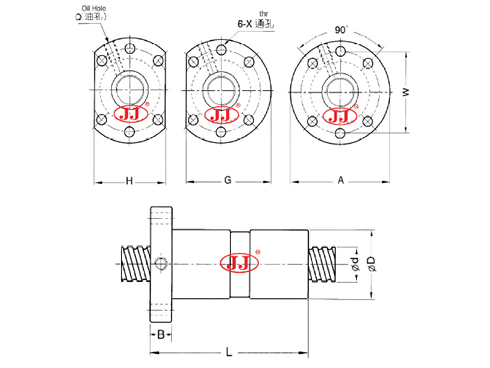

Dimensions(mm)
|
Inventory
|
| d |
I |
Da |
D |
A |
B |
L |
W |
X |
H |
Q |
n |
Ca |
Coa |
K |
|
DFU1604-4
|
16
|
4
|
2.381
|
28
|
48
|
10
|
80
|
38
|
5.5
|
40
|
M6
|
4
|
629
|
1270
|
42
|
√
|
|
DFU1605-3
|
16
|
5
|
3.175
|
28
|
48
|
10
|
86
|
38
|
5.5
|
40
|
M6
|
3
|
765
|
1240
|
30
|
√
|
|
DFU1605-4
|
16
|
5
|
3.175
|
28
|
48
|
10
|
100
|
38
|
5.5
|
40
|
M6
|
4
|
780
|
1790
|
43
|
√
|
|
DFU1610-3/2
|
16
|
10
|
3.175
|
28
|
48
|
10
|
96
|
38
|
5.5
|
40
|
M6
|
3
|
721
|
1249
|
28
|
√
|
|
DFU2005-3
|
20
|
5
|
3.175
|
36
|
58
|
10
|
86
|
47
|
6.6
|
44
|
M6
|
3
|
860
|
1710
|
42
|
√
|
|
DFU2005-4
|
20
|
5
|
3.175
|
36
|
58
|
10
|
101
|
47
|
6.6
|
44
|
M6
|
4
|
1130
|
2380
|
52
|
√
|
|
DFU2010-3/2
|
20
|
10
|
3.175
|
36
|
58
|
10
|
96
|
47
|
6.6
|
44
|
M6
|
3
|
830
|
1680
|
38
|
√
|
|
DFU2505-3
|
25
|
5
|
3.175
|
40
|
63
|
10
|
86
|
51
|
6.6
|
48
|
M6
|
3
|
980
|
2300
|
60
|
√
|
|
DFU2505-4
|
25
|
5
|
3.175
|
40
|
63
|
10
|
101
|
51
|
6.6
|
48
|
M6
|
4
|
1280
|
3110
|
65
|
√
|
|
DFU2510-4
|
25
|
10
|
4.762
|
40
|
63
|
10
|
145
|
51
|
6.6
|
48
|
M6
|
4
|
1944
|
3877
|
67
|
√
|
|
DFU2510-4/2
|
25
|
10
|
3.175
|
40
|
63
|
10
|
103
|
51
|
6.6
|
48
|
M6
|
4
|
1150
|
2950
|
58
|
√
|
|
DFU3205-4
|
32
|
5
|
3.175
|
50
|
81
|
12
|
102
|
65
|
9
|
62
|
M6
|
4
|
1450
|
4150
|
82
|
√
|
|
DFU3206-4
|
32
|
6
|
3.175
|
50
|
81
|
12
|
105
|
65
|
9
|
62
|
M6
|
4
|
1720
|
4298
|
84
|
√
|
|
DFU3210-4
|
32
|
10
|
6.350
|
50
|
81
|
14
|
162
|
65
|
9
|
62
|
M6
|
4
|
3390
|
7170
|
86
|
√
|
|
DFU4005-4
|
40
|
5
|
3.175
|
63
|
93
|
14
|
105
|
78
|
9
|
70
|
M8
|
4
|
1610
|
5330
|
90
|
√
|
|
DFU4010-4
|
40
|
10
|
6.350
|
63
|
93
|
14
|
165
|
78
|
9
|
70
|
M8
|
4
|
3910
|
9520
|
105
|
√
|
|
DFU5005-4
|
50
|
5
|
5.175
|
75
|
110
|
15
|
55
|
93
|
11
|
85
|
M8
|
4
|
1730
|
6763
|
119
|
√
|
|
DFU5010-4
|
50
|
10
|
6.350
|
75
|
110
|
16
|
171
|
93
|
11
|
85
|
M8
|
4
|
4450
|
12500
|
131
|
√
|
|
DFU5020-4
|
50
|
20
|
7.144
|
75
|
110
|
16
|
280
|
93
|
11
|
85
|
M8
|
4
|
4644
|
14327
|
132
|
√
|
|
DFU6310-4
|
63
|
10
|
6.350
|
90
|
125
|
18
|
182
|
108
|
11
|
95
|
M8
|
4
|
5070
|
16600
|
150
|
√
|
|
DFU6320-4
|
63
|
20
|
9.525
|
95
|
135
|
20
|
290
|
115
|
13.5
|
100
|
M8
|
4
|
7573
|
23860
|
160
|
√
|
|
DFU8010-4
|
80
|
10
|
6.350
|
105
|
145
|
20
|
182
|
125
|
13.5
|
110
|
M8
|
4
|
5620
|
21300
|
182
|
√
|
|
DFU8010-6
|
80
|
10
|
6.350
|
105
|
145
|
22
|
220
|
125
|
13.5
|
110
|
M8
|
6
|
7810
|
31800
|
210
|
√
|
|
DFU8020-4
|
80
|
20
|
9.525
|
125
|
165
|
25
|
295
|
145
|
13.5
|
130
|
M8
|
4
|
8485
|
30895
|
195
|
√
|
