JG Series > JGY15CA/HA...JGY65CA/HA

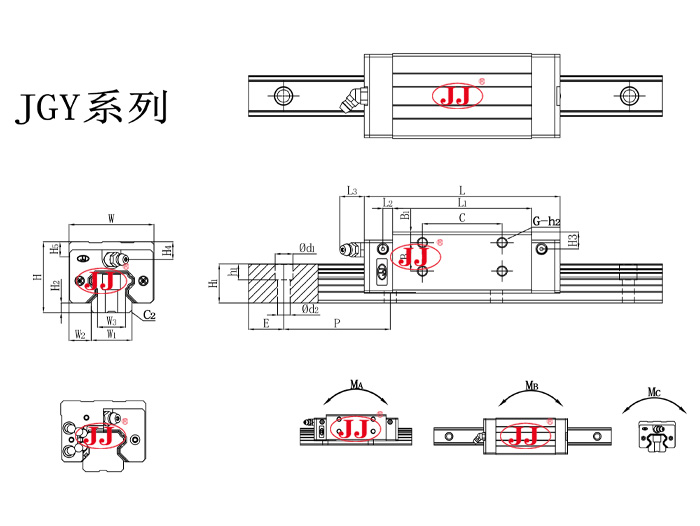

model	Combination size			Rail size							Installation bolt size of guide rail	Slider size (mm)											Basic rated dynamic load	Basic rated static load	torque			weight		inventory
model	H	H2	W2	W1	H1	d1Xd2Xh1	P	E	C2	W3	Installation bolt size of guide rail	W	B	B1	C	L1	L	L3	GXh2	H5	H4	H3	C(KN)	C0(KN)	Axial MA	Lateral MB	Radial MC	slider	Guide rail	inventory
JGY15CA	28	4.3	9.5	15	15	7.5X4.5X5.3	60	20	0.7	9.55	M4X16	34	11.5	4.3	18	39.4	62	5.3	M4X5	6	7.95	7.7	11.4	25.3	0.15	0.15	0.17	0.18	1.45	√
JGY20CA	30	4.6	12	20	17.5	9.5X6X8.5	60	20	1	13.2	M5X16	44	11.5	4	25	50.5	78	12	M5X6	8	6	6	17.75	37.85	0.27	0.27	0.38	0.3	2.21	√
JGY20HA	30	4.6	12	20	17.5	9.5X6X8.5	60	20	1	13.2	M5X16	44	11.5	4	25	65.2	93	12	M5X6	8	6	6	21.2	48.85	0.47	0.47	0.48	0.39	2.21	√
JGY25CA	40	5.5	12.5	23	22	11X7X9	60	20	1.5	15.8	M6X20	48	16	6	30	58	82.4	12	M6X6	8	10	69	26.5	59.2	0.51	0.51	0.64	0.51	3.21	√
JGY25HA	40	5.5	12.5	23	22	11X7X9	60	20	1.5	15.8	M6X20	48	16	6	30	78.6	103	12	M6X6	8	10	69	32.75	76	0.88	0.88	0.87	0.69	3.21	√
JGY30CA	45	6	16	28	26	14X9X12	80	20	1.5	18.6	M8X25	60	16	8	40	70	98	12	M6X9	8.5	9.5	13.8	38.7	83	0.85	0.85	1.06	0.88	4.47	√
JGY30HA	45	6	16	28	26	14X9X12	80	20	1.5	18.6	M8X25	60	16	8	40	93	121	12	M6X9	8.5	9.5	13.8	47.3	110	1.47	1.47	1.4	1.16	4.47	√
JGY35CA	55	7.5	18	34	29	14X9X12	80	20	1.5	23.8	M8X25	70	23	8	43	80	111.5	12	M8X10	10.2	16	19.6	49.52	103	1.2	1.2	1.73	1.45	6.3	√
JGY35HA	55	7.5	18	34	29	14X9X12	80	20	1.5	23.8	M8X25	70	23	8	43	105.8	137.3	12	M8X10	10.2	16	19.6	60.21	136	2.08	2.08	2.29	1.92	6.3	√
JGY45CA	70	9.5	20.5	45	38	20X14X17	105	22.5	2	29	M12X35	86	30	10	55	97	140	12.9	M10X14	16	18.5	30.5	77.57	156	2.35	2.35	3.01	2.73	10.41	√
JGY45HA	70	9.5	20.5	45	38	20X14X17	105	22.5	2	29	M12X35	86	30	10	55	128.8	172	12.9	M10X14	16	18.5	30.5	94.54	207	4.07	4.07	4	3.61	10.41	√
JGY55CA	80	13	23.5	53	44	23X16X20	120	30	2	38	M14X45	100	32	12	70	117.7	168	12.9	M12X15	17.5	22	29	115	228	4.06	4.06	5.66	4.17	15.08	√
JGY55HA	80	13	23.5	53	44	23X16X20	120	30	2	38	M14X45	100	32	12	70	155.8	206	12.9	M12X15	17.5	22	29	139	301	7.01	7.01	7.49	5.49	15.08	√
JGY65CA	90	15	31.5	63	53	26X18X22	150	35	2	44	M16X50	126	35	12	85	144.2	201	12.9	M16X22	25	15	15	163	327	6.44	6.44	10.02	7	21.18	√
JGY65HA	90	15	31.5	63	53	26X18X22	150	35	2	44	M16X50	126	35	12	85	203.6	260	12.9	M16X22	25	15	15	208	457	11.12	11.12	14.15	9.82	21.18	√
