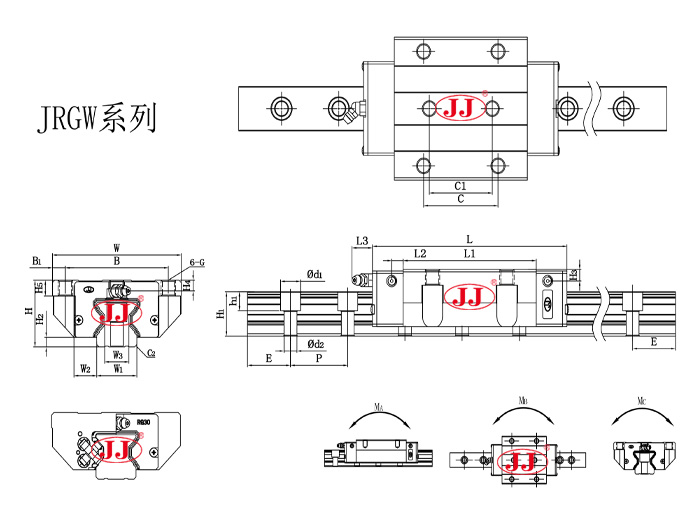

JRG Series > JRGW15CC/HC...JRGW65CC/HC

model	Combination size			Rail size							Installation bolt size of guide rail	Slider size (mm)														Basic rated dynamic load	Basic rated static load	torque			weight		inventory
model	H	H2	W2	W1	H1	d1Xd2Xh1	P	E	C2	W3	Installation bolt size of guide rail	W	B	B1	C	C1	L1	L	L2	L3	G	H6	H5	H4	H3	C(KN)	C0(KN)	Axial MA	Lateral MB	Radial MC	slider	Guide rail kg/m	inventory
JRGW15CC	24	4	16	15	16.5	7.5X4.5X5.7	30	20	0.7	9.5	M4X16	47	38	4.5	30	26	45	69	4.7	5.3	M5	6.95	6	3.6	6.1	11.4	24	0.173	0.173	0.311	0.22	1.8	X
JRGW20CC	30	5	21.5	20	21	9.5X6X8.5	30	20	1	12.1	M5X20	63	53	5	40	35	57.5	87	6	5.3	M6	10	8	4.3	4.3	21.4	46.8	0.46	0.46	0.647	0.47	2.76	X
JRGW20HC	30	5	21.5	20	21	9.5X6X8.5	30	20	1	12.1	M5X20	63	53	5	40	35	77.5	107	6	5.3	M6	10	8	4.3	4.3	27	63	0.837	0.837	0.872	0.63	2.76	X
JRGW25CC	36	5.5	23.5	23	23.6	11X7X9	30	20	1.5	14.7	M6X20	70	57	6.5	45	40	64.5	99	7.25	12	M8	10	9.5	6.2	6	27.8	57.2	0.605	0.605	0.758	0.72	3.08	X
JRGW25HC	36	5.5	23.5	23	23.6	11X7X9	30	20	1.5	14.7	M6X20	70	57	6.5	45	40	81	115	7.25	12	M8	10	9.5	6.2	6	34	74	0.991	0.991	0.975	0.91	3.08	X
JRGW30CC	42	6	31	28	28	14X9X12	40	20	1.5	17.1	M8X25	90	72	9	52	44	71	109.8	8	12	M10	10	9.5	6.5	7.3	39	83	1.06	1.06	1.445	1.16	4.41	X
JRGW30HC	42	6	31	28	28	14X9X12	40	20	1.5	17.1	M8X25	90	72	9	52	44	93	131.8	8	12	M10	10	9.5	6.5	7.3	48	105	1.712	1.712	1.846	1.52	4.41	X
JRGW35CC	48	6.5	33	34	30.2	14X9X12	40	20	1.5	23.8	M8X25	100	82	9	62	52	79	125	10	12	M10	13	12	9	12.6	58.5	105	1.44	1.44	2.17	1.75	6.06	X
JRGW35HC	48	6.5	33	34	30.2	14X9X12	40	20	1.5	23.8	M8X25	100	82	9	62	52	106.5	153	10	12	M10	13	12	9	12.6	73	142	2.6	2.6	2.93	2.4	6.06	X
JRGW45CC	60	8	37.5	45	38	20X14X17	52.5	22.5	2	30.5	M12X35	120	100	10	80	60	106	154	10	12.9	M12	15	14	10	14	93	179	3.05	3.05	4.52	3.43	9.97	X
JRGW45HC	60	8	37.5	45	38	20X14X17	52.5	22.5	2	30.5	M12X35	120	100	10	80	60	139.8	188	10	12.9	M12	15	14	10	14	116	231	5.47	5.47	6.33	4.57	9.97	X
JRGW55CC	70	10	43.5	53	44	23X16X20	60	30	2	38	M14X45	140	116	12	95	70	125.5	185	12.5	12.9	M14	17	16	12	17.5	130.8	252	5.4	5.4	8.01	5.43	13.98	X
JRGW55HC	70	10	43.5	53	44	23X16X20	60	30	2	38	M14X45	140	116	12	95	70	173.8	233	12.5	12.9	M14	17	16	12	17.5	168	348	10.25	10.25	11.15	7.61	13.98	X
JRGW65CC	90	12	53.5	63	53	26X18X22	75	35	2	44	M16X50	170	142	14	110	82	160	233	15.8	12.9	M16	23	22	15	15	213	410	11.59	11.59	16.2	11.63	20.22	X
JRGW65HC	90	12	53.5	63	53	26X18X22	75	35	2	44	M16X50	170	142	14	110	82	223	296	15.8	12.9	M16	23	22	15	15	276	570	22.17	22.17	22.55	16.58	20.22	X
