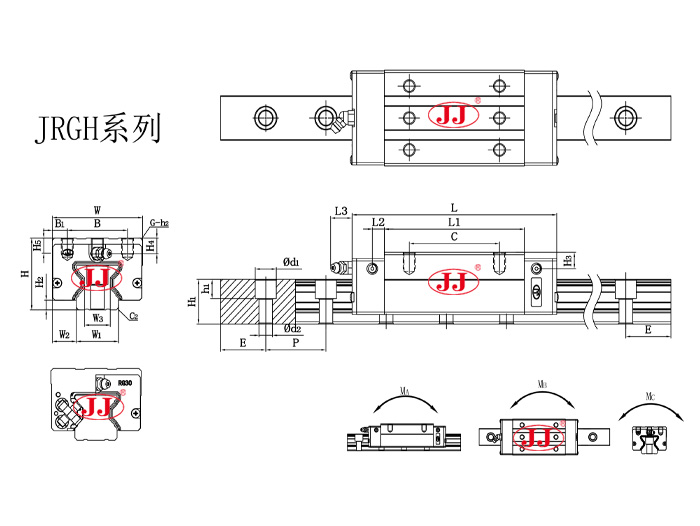

| model | Combination size | Rail size | Installation bolt size of guide rail | Slider size (mm) | Basic rated dynamic load | Basic rated static load | torque | weight | inventory | ||||||||||||||||||||||
| H | H2 | W2 | W1 | H1 | d1Xd2Xh1 | P | E | C2 | W3 | W | B | B1 | C | L1 | L | L2 | L3 | GXh2 | H5 | H4 | H3 | C(KN) | C0(KN) | Axial MA | Lateral MB | Radial MC | slider | Guide rail | |||
| JRGH15CA | 28 | 4 | 9.5 | 15 | 16.5 | 7.5X4.5X5.7 | 30 | 20 | 0.7 | 9.5 | M4X16 | 34 | 26 | 4 | 26 | 45 | 69 | 4.7 | 5.3 | M4X8 | 6 | 7.6 | 10.1 | 11.4 | 24 | 0.173 | 0.173 | 0.311 | 0.2 | 1.8 | X |
| JRGH20CA | 34 | 5 | 12 | 20 | 21 | 9.5X6X8.5 | 30 | 20 | 1 | 12.1 | M5X20 | 44 | 32 | 6 | 36 | 57.5 | 87 | 6 | 5.3 | M5X8 | 8 | 8.3 | 8.3 | 21.4 | 46.8 | 0.46 | 0.46 | 0.647 | 0.4 | 2.76 | X |
| JRGH20HA | 34 | 5 | 12 | 20 | 21 | 9.5X6X8.5 | 30 | 20 | 1 | 12.1 | M5X20 | 44 | 32 | 6 | 50 | 77.5 | 107 | 6 | 5.3 | M5X8 | 8 | 8.3 | 8.3 | 27 | 63 | 0.837 | 0.837 | 0.872 | 0.53 | 2.76 | X |
| JRGH25CA | 40 | 5.5 | 12.5 | 23 | 23.6 | 11X7X9 | 30 | 20 | 1.5 | 14.7 | M6X20 | 48 | 35 | 6.5 | 35 | 64.5 | 99 | 7.25 | 12 | M6X8 | 9.5 | 10.2 | 10 | 27.8 | 57.2 | 0.605 | 0.605 | 0.758 | 0.61 | 3.08 | X |
| JRGH25HA | 40 | 5.5 | 12.5 | 23 | 23.6 | 11X7X9 | 30 | 20 | 1.5 | 14.7 | M6X20 | 48 | 35 | 6.5 | 50 | 81 | 115 | 7.25 | 12 | M6X8 | 9.5 | 10.2 | 10 | 34 | 74 | 0.991 | 0.991 | 0.975 | 0.75 | 3.08 | X |
| JRGH30CA | 45 | 6 | 16 | 28 | 28 | 14X9X12 | 40 | 20 | 1.5 | 17.1 | M8X25 | 60 | 40 | 10 | 40 | 71 | 115 | 8 | 12 | M8X10 | 9.5 | 9.5 | 10.3 | 39 | 83 | 1.06 | 1.06 | 1.445 | 0.9 | 4.41 | X |
| JRGH30HA | 45 | 6 | 16 | 28 | 28 | 14X9X12 | 40 | 20 | 1.5 | 17.1 | M8X25 | 60 | 40 | 10 | 60 | 93 | 137 | 8 | 12 | M8X10 | 9.5 | 9.5 | 10.3 | 48 | 105 | 1.712 | 1.712 | 1.846 | 1.16 | 4.41 | X |
| JRGH35CA | 55 | 6.5 | 18 | 34 | 30.2 | 14X9X12 | 40 | 20 | 1.5 | 23.8 | M8X25 | 70 | 50 | 10 | 50 | 79 | 125 | 10 | 12 | M8X12 | 12 | 16 | 19.6 | 58.5 | 105 | 1.44 | 1.44 | 2.17 | 1.57 | 6.06 | X |
| JRGH35HA | 55 | 6.5 | 18 | 34 | 30.2 | 14X9X12 | 40 | 20 | 1.5 | 23.8 | M8X25 | 70 | 50 | 10 | 72 | 106.5 | 153 | 10 | 12 | M8X12 | 12 | 16 | 19.6 | 73 | 142 | 2.6 | 2.6 | 2.93 | 2.06 | 6.06 | X |
| JRGH45CA | 70 | 8 | 20.5 | 45 | 38 | 20X14X17 | 52.5 | 22.5 | 2 | 30.5 | M12X35 | 86 | 60 | 13 | 60 | 106 | 154 | 10 | 12.9 | M10X17 | 16 | 20 | 24 | 93 | 179 | 3.05 | 3.05 | 4.52 | 3.18 | 9.97 | X |
| JRGH45HA | 70 | 8 | 20.5 | 45 | 38 | 20X14X17 | 52.5 | 22.5 | 2 | 30.5 | M12X35 | 86 | 60 | 13 | 80 | 139.8 | 188 | 10 | 12.9 | M10X17 | 16 | 20 | 24 | 116 | 231 | 5.47 | 5.47 | 6.33 | 4.13 | 9.97 | X |
| JRGH55CA | 80 | 10 | 23.5 | 53 | 44 | 23X16X20 | 60 | 30 | 2 | 38 | M14X45 | 100 | 75 | 12.5 | 75 | 125.5 | 185 | 12.5 | 12.9 | M12X18 | 17.5 | 22 | 27.5 | 130.8 | 252 | 5.4 | 5.4 | 8.01 | 4.89 | 13.98 | X |
| JRGH55HA | 80 | 10 | 23.5 | 53 | 44 | 23X16X20 | 60 | 30 | 2 | 38 | M14X45 | 100 | 75 | 12.5 | 95 | 173.8 | 233 | 12.5 | 12.9 | M12X18 | 17.5 | 22 | 27.5 | 168 | 348 | 10.25 | 10.25 | 11.15 | 6.68 | 13.98 | X |
| JRGH65CA | 90 | 12 | 31.5 | 63 | 53 | 26X18X22 | 75 | 35 | 2 | 44 | M16X50 | 126 | 76 | 25 | 70 | 160 | 233 | 15.8 | 12.9 | M16X20 | 25 | 15 | 15 | 213 | 410 | 11.59 | 11.59 | 16.2 | 8.89 | 20.22 | X |
| JRGH65HA | 90 | 12 | 31.5 | 63 | 53 | 26X18X22 | 75 | 35 | 2 | 44 | M16X50 | 126 | 76 | 25 | 120 | 223 | 296 | 15.8 | 12.9 | M16X20 | 25 | 15 | 15 | 276 | 570 | 22.17 | 22.17 | 22.55 | 12.13 | 20.22 | X |
