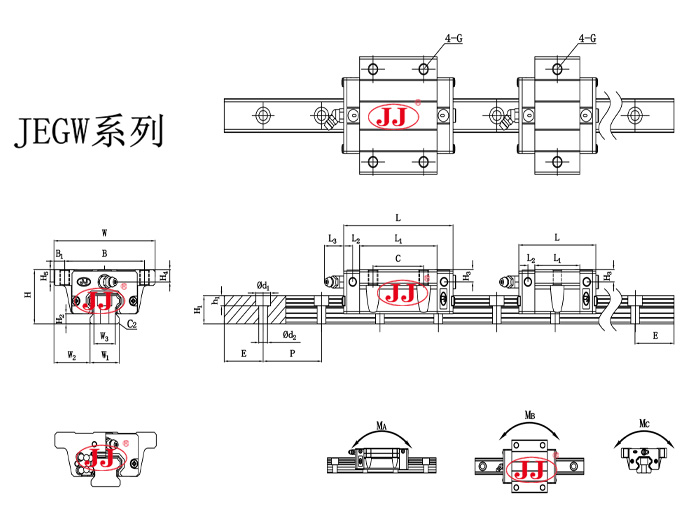

JEG Series > JEGW15SC/CC...JEGW35SC/CC

model	Combination size			Rail size							Installation bolt size of guide rail	Slider size (mm)													Basic rated dynamic load	Basic rated static load	torque			weight		inventory
model	H	H2	W2	W1	H1	d1Xd2Xh1	P	E	C2	W3	Installation bolt size of guide rail	W	B	B1	C	L1	L	L3	L3	G	H6	H5	H4	H3	C(KN)	C0(KN)	Axial MA	Lateral MB	Radial MC	slider	Guide rail	inventory
JEGW15SC	24	4.5	18.5	15	12.5	7.5X4.5X4.5	60	20	0.7	11	M4X16	52	41	5.5	/	23.1	41	3.5	5.7	M5	7	5	5.5	6	5.35	9.4	0.04	0.04	0.08	0.12	1.25	√
JEGW15CC	24	4.5	18.5	15	12.5	7.5X4.5X4.5	60	20	0.7	11	M4X16	52	41	5.5	26	39.8	57	3.5	5.7	M5	7	5	5.5	6	7.84	16.2	0.1	0.1	0.13	0.21	1.25	√
JEGW20SC	28	6	19.5	20	15.5	9.5X6X8.5	60	20	1	15	M5X16	59	49	5	/	29	51	4.15	12	M6	9	7	6	6	7.25	12.75	0.06	0.06	0.13	0.19	2.08	√
JEGW20CC	28	6	19.5	20	15.5	9.5X6X8.5	60	20	1	15	M5X16	59	49	5	32	48.1	70	4.15	12	M6	9	7	6	6	10.3	21.15	0.16	0.16	0.22	0.32	2.08	√
JEGW25SC	33	7	25	23	18	11X7X9	60	20	1.5	16.6	M6X20	73	60	6.5	/	35.5	60	4.55	12	M8	10	7.5	8	8	11.42	19.5	0.12	0.12	0.23	0.35	2.67	√
JEGW25CC	33	7	25	23	18	11X7X9	60	20	1.5	16.6	M6X20	73	60	6.5	35	59	83	4.55	12	M8	10	7.5	8	8	16.3	32.4	0.32	0.32	0.38	0.59	2.67	√
JEGW30SC	42	10	31	28	23	11X7X9	80	20	1.5	21	M6X25	90	72	9	/	41.5	70	6	12	M10	10	7	8	9	16.43	28.1	0.21	0.21	0.4	0.63	4.35	√
JEGW30CC	42	10	31	28	23	11X7X9	80	20	1.5	21	M6X25	90	72	9	40	70.1	99	6	12	M10	10	7	8	9	23.7	47.5	0.55	0.55	0.68	1.04	4.35	√
JEGW35SC	48	11	33	34	27.5	14X9X12	80	20	1.5	27	M8X25	100	82	9	/	45	76	7	12	M10	13	10	8.5	8.5	22.7	37.4	0.31	0.31	0.56	0.84	6.14	√
JEGW35CC	48	11	33	34	27.5	14X9X12	80	20	1.5	27	M8X25	100	82	9	50	78	109	7	12	M10	13	10	8.5	8.5	33.35	64.8	0.69	0.69	0.98	1.45	6.14	√
