LINEAR MOTION SERIES

LINEAR MOTION PORTFOLIO > SC6UU...SC60UU SC6WUU...SC60WUU SC6VUU...SC60VUU

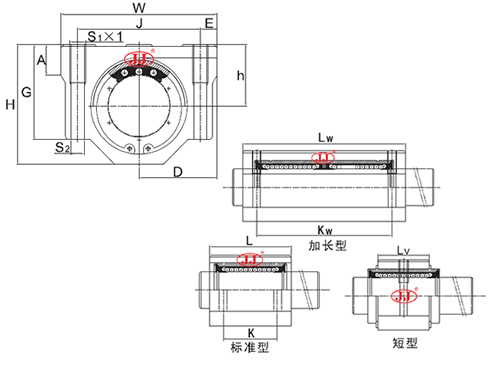

Standard type					Extended type					Short type					Size (mm)																Inventory
Model No.	Fitted bearing 1PCS	Load factor C(N)	Load factor Co(N)	Weight (gr)	Model No.	Fitted bearing 2PCS	Load factor C(N)	Load factor Co(N)	Weight (gr)	Model No.	Fitted bearing 1PCS	Load factor C(N)	Load factor Co(N)	Weight (gr)	Nominal Shaft Diameter	h	D	W	H	G	A	J	E	S₁×1	S₂	Standard K	Standard L	King-size Kw	King-size Lw	Short Lv	Inventory
SC6UU	LM6UU	206	265	34	SC6WUU	LM6U	324	529	62	SC6VUU	LM6UU	206	265	28	φ6	9	15	30	18	15	8	20	5	M4×8	φ3.4	15	25	36	48	-	√
SC8UU	LM8UU	260	400	56	SC8WUU	LM8U	410	800	94	SC8VUU	LM8UU	260	400	36	φ8	11	17	34	22	18	6	24	5	M4×8	φ3.4	18	30	42	58	15.4	√
SC10UU	LM10UU	370	540	90	SC10WUU	LM10U	590	1080	147	SC10VUU	LM10UU	370	540	63	φ10	13	20	40	26	21	8	28	6	M5×12	φ4.3	21	35	46	68	19.5	√
SC12UU	LM12UU	410	590	112	SC12WUU	LM12U	650	1180	220	SC12VUU	LM12UU	410	590	74	φ12	15	21	42	28	24	7.4	30.5	5.75	M5×12	φ4.3	26	39	50	70	20.5	√
SC13UU	LM13UU	500	770	123	SC13WUU	LM13U	BOO	1540	245	SC13VUU	LM13UU	500	770	85	φ13	15	22	44	30	24.5	8	33	5.5	M5×12	φ4.3	26	39	50	75	20.5	√
SC16UU	LM16UU	770	1170	189	SC16WUU	LM16U	1230	2340	376	SC16VUU	LM16UU	770	1170	132	φ16	19	25	50	38.5	32.5	9	36	7	M5×12	φ4.3	34	44	60	85	23.5	√
SC20UU	LM20UU	860	1370	237	SC20WUU	LM20U	1370	2740	476	SC20VUU	LM20UU	860	1370	170	φ20	21	27	54	41	35	11	40	7	M6×12	φ5.2	40	50	70	96	27.4	√
SC25UU	LM25UU	980	1560	555	SC25WUU	LM25U	1560	3120	1115	SC25VUU	LM25UU	980	1560	405	φ25	26	38	76	51.5	41	12	54	11	M8×18	φ6.8	50	67	100	130	37.4	√
SC30UU	LM30UU	1560	2740	685	SC30WUU	LM30U	2490	5480	1375	SC30VUU	LM30UU	1560	2740	495	φ30	30	39	78	59.5	49	15	58	10	M8×18	φ6.8	58	72	110	140	40.9	√
SC35UU	LM35UU	1660	3130	1100	SC35WUU	LM35U	2650	6260	2200	SC35VUU	LM35UU	1660	3130	790	φ35	34	45	90	68	54	18	70	10	M8×18	φ6.8	60	80	120	155	45.4	√
SC40UU	LM40UU	2150	4010	1600	SC40WUU	LM40U	3440	8020	3200	SC40VUU	LM40UU	2150	4010	1220	φ40	40	51	102	78	62	20	80	11	M10×25	φ8.6	60	90	140	175	56.4	√
SC50UU	LM50UU	3820	7930	3350	SC50WUU	LM50U	6110	15860	6720	SC50VUU	LM50UU	3820	7930	2300	φ50	52	61	122	102	80	24	100	11	M10×25	φ8.6	80	110	160	215	68.9	√
SC60UU	LM60UU	4710	10000	4270	SC60WUU	LM60U	7650	20000	8560	SC60VUU	LM60UU	4710	10000	3200	φ60	58	66	132	114	94	30	108	12	M12×25	φ10.7	90	122	180	240	78.7	√
