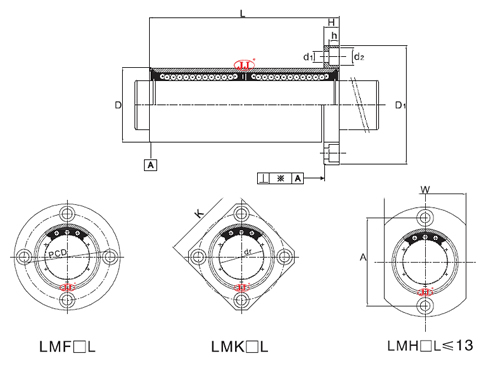

| Model No. | NUMBER OF BALL ROWS | Weight(g) | Allowable diameterTolerances(μm) | Base load factor | INSCRIBED CIRCLE DIAMETER | Dimensions(mm) | Inventory | |||||||||||||||||
| LMF-L king-size | LMK king-size | LMEH king-size | DynamicC(N) | StaticCo(N) | dr(mm) | Tolerances(μm) | Outer diameterD(mm) | Outer diameterDTolerances(μm) | Length L(mm) | Length LTolerances(mm) | D1(mm) | D1Tolerances(mm) | H | PCD | K | W | A | F | Straight angle※(μm) | d1×d2×h | ||||
| LMF6LUU | LMK6LUU | LMH6LUU | 4 | 31 | -5 | 320 | 520 | 6 | 0 -10 | 12 | 0 -13 | 35 | 0 -0.2 | 28 | 0 -0.2 | 5 | 20 | 22 | 18 | 20 | - | 15 | 3.4×6.5×3.3 | √ |
| LMF8LUU | LMK8LUU | LMH8LUU | 4 | 53 | -5 | 430 | 780 | 8 | 0 -10 | 15 | 0 -13 | 45 | 0 -0.2 | 32 | 0 -0.2 | 5 | 24 | 25 | 21 | 24 | - | 15 | 3.4×6.5×3.3 | √ |
| LMF10LUU | LMK10LUU | LMH10LUU | 4 | 105 | -5 | 580 | 1100 | 10 | 0 -10 | 19 | 0 -16 | 55 | 0 -0.2 | 40 | 0 -0.2 | 6 | 29 | 30 | 25 | 29 | - | 15 | 4.5×8×4.4 | √ |
| LMF12LUU | LMK12LUU | LMH12LUU | 4 | 100 | -5 | 650 | 1200 | 12 | 0 -10 | 21 | 0 -16 | 57 | 0 -0.2 | 42 | 0 -0.2 | 6 | 32 | 32 | 27 | 32 | - | 15 | 4.5×8×4.4 | √ |
| LMF13LUU | LMK13LUU | LMH13LUU | 4 | 130 | -7 | 810 | 1570 | 13 | 0 -10 | 23 | 0 -16 | 61 | 0 -0.2 | 43 | 0 -0.2 | 6 | 33 | 34 | 29 | 33 | - | 15 | 4.5×8×4.4 | √ |
| LMF16LUU | LMK16LUU | LMH16LUU | 5 | 187 | -7 | 1230 | 2350 | 16 | 0 -10 | 28 | 0 -16 | 70 | 0 -0.2 | 48 | 0 -0.2 | 6 | 38 | 37 | 34 | 31 | 22 | 15 | 4.5×8×4.4 | √ |
| LMF20LUU | LMK20LUU | LMH20LUU | 5 | 260 | -9 | 1400 | 2750 | 20 | 0 -12 | 32 | 0 -19 | 80 | 0 -0.2 | 54 | 0 -0.2 | 8 | 43 | 42 | 38 | 36 | 24 | 20 | 5.5×9.5×5.4 | √ |
| LMF25LUU | LMK25LUU | LMH25LUU | 6 | 515 | -9 | 1560 | 3140 | 25 | 0 -12 | 40 | 0 -19 | 112 | 0 -0.3 | 62 | 0 -0.2 | 8 | 51 | 50 | 46 | 40 | 32 | 20 | 5.5×9.5×5.4 | √ |
| LMF30LUU | LMK30LUU | LMH30LUU | 6 | 655 | -9 | 2490 | 5490 | 30 | 0 -12 | 45 | 0 -19 | 123 | 0 -0.3 | 74 | 0 -0.2 | 10 | 60 | 58 | 51 | 49 | 35 | 20 | 6.6×11×6.5 | √ |
| LMF35LUU | LMK35LUU | - | 6 | 970 | -13 | 2650 | 6470 | 35 | 0 -15 | 52 | 0 -22 | 135 | 0 -0.3 | 82 | 0 -0.2 | 10 | 67 | 64 | - | - | - | 25 | 6.6×11×6.5 | √ |
| LMF40LUU | LMK40LUU | - | 6 | 1560 | -13 | 3430 | 8040 | 40 | 0 -15 | 60 | 0 -22 | 154 | 0 -0.3 | 96 | 0 -0.3 | 13 | 78 | 75 | - | - | - | 25 | 9×14×8.6 | √ |
| LMF50LUU | LMK50LUU | - | 6 | 3500 | -13 | 6080 | 15900 | 50 | 0 -15 | 80 | 0 -22 | 192 | 0 -0.3 | 116 | 0 -0.3 | 13 | 98 | 92 | - | - | - | 25 | 9×14×8.6 | √ |
| LMF60LUU | LMK60LUU | - | 6 | 4500 | -16 | 7650 | 20000 | 60 | 0 -20 | 90 | 0 -25 | 211 | 0 -0.3 | 134 | 0 -0.3 | 18 | 112 | 106 | - | - | - | 25 | 11×17.5×10.8 | √ |
