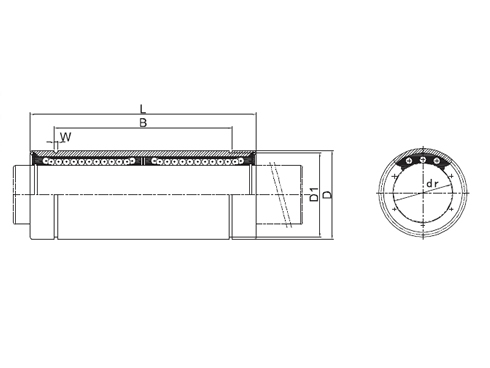

| LME Lseries | INSCRIBED CIRCLE DIAMETER | Dimensions(mm) | W | D1 | Weight(g) | BASIC LOAD RATING | Inventory | ||||||||
| Model No. | NUMBER OF BALL ROWS | dr(mm) | Tolerances(μm) | OUTER DIAMETER Ddr(mm) | OUTER DIAMETER DTolerances(μm) | Length Ldr(mm) | Length LTolerances(μm) | Bdr(mm) | BTolerances(μm) | DynamicC(N) | StaticCo(N) | ||||
| LME8LUU | 4 | 8 | +9 -1 | 16 | 0 -9 | 45 | 0 -0.3 | 33 | 0 -0.3 | 1.1 | 15.2 | 31 | 430 | 780 | ○ |
| LME12LUU | 4 | 12 | +9 -1 | 22 | 0 -11 | 57 | 0 -0.3 | 45.8 | 0 -0.3 | 1.3 | 21 | 80 | 650 | 1200 | ○ |
| LME16LUU | 5 | 16 | +11 -1 | 26 | 0 -11 | 70 | 0 -0.3 | 49.8 | 0 -0.3 | 1.3 | 24.9 | 145 | 1230 | 2350 | ○ |
| LME20LUU | 5 | 20 | +11 -1 | 32 | 0 -13 | 80 | 0 -0.3 | 61 | 0 -0.3 | 1.6 | 30.3 | 180 | 1400 | 2750 | ○ |
| LME25LUU | 6 | 25 | +13 -2 | 40 | 0 -13 | 112 | 0 -0.4 | 82 | 0 -0.4 | 1.85 | 38 | 440 | 1560 | 3140 | ○ |
| LME30LUU | 6 | 30 | +13 -2 | 47 | 0 -13 | 123 | 0 -0.4 | 104.2 | 0 -0.4 | 1.85 | 44.5 | 580 | 2490 | 5490 | ○ |
| LME40LUU | 6 | 40 | +16 -4 | 62 | 0 -15 | 154 | 0 -0.4 | 121.2 | 0 -0.4 | 2.15 | 59 | 1170 | 3430 | 8040 | ○ |
| LME50LUU | 6 | 50 | +16 -4 | 75 | 0 -15 | 192 | 0 -0.4 | 155.2 | 0 -0.4 | 2.65 | 72 | 3100 | 6080 | 15900 | ○ |
| LME60LUU | 6 | 60 | +16 -4 | 90 | 0 -25 | 211 | 0 -0.4 | 170 | 0 -0.4 | 3.15 | 86.5 | 3500 | 7650 | 20000 | ○ |
