BALL JOINTS(ROD ENDS)
|
Model No.
|
Dimensions(mm)
|
Load ratings kN
|
Weight≈kg
|
Inventory
|

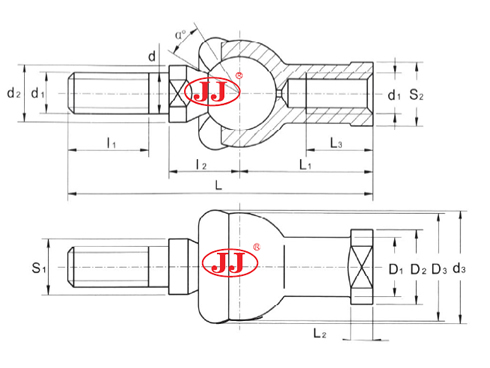

| d |
d1 |
d2min |
d3max |
I1min |
I2 |
S1 |
Lmax |
L1 |
L2max |
L3max |
D1max |
D2max |
D3max |
S2 |
a°≈ |
|
SQZ5-RS
|
5
|
M5
|
9
|
19
|
8
|
11
|
7
|
46
|
24
|
4
|
12
|
9
|
11
|
17
|
9
|
15
|
2.8
|
0.025
|
√
|
|
SQZ6-RS
|
6
|
M6
|
10
|
20
|
11
|
12.2
|
8
|
55.2
|
28
|
5
|
15
|
10
|
13
|
20
|
11
|
15
|
3.7
|
0.041
|
√
|
|
SQZ8-RS
|
8
|
M8
|
12
|
24
|
12
|
16
|
10
|
65
|
32
|
5
|
16
|
12.5
|
16
|
24
|
14
|
15
|
5.8
|
0.075
|
√
|
|
SQZ10-RS
|
10
|
M10×1.25
|
14
|
30
|
15
|
19.5
|
11
|
74.5
|
35
|
6.5
|
18
|
15
|
19
|
28
|
17
|
15
|
8.4
|
0.12
|
√
|
|
SQZ10-RS-1
|
10
|
M10×1.5
|
14
|
30
|
21
|
19.5
|
11
|
80.5
|
35
|
6.5
|
18
|
15
|
19
|
28
|
17
|
15
|
8.4
|
0.12
|
√
|
|
SQZ12-RS
|
12
|
M12×1.25
|
17
|
32
|
17
|
21
|
15
|
84
|
40
|
6.5
|
20
|
17.5
|
22
|
32
|
19
|
15
|
11
|
0.18
|
√
|
|
SQZ12-RS-1
|
12
|
M12×1.75
|
17
|
32
|
24
|
21
|
15
|
91
|
40
|
6.5
|
20
|
17.5
|
22
|
32
|
19
|
15
|
11
|
0.18
|
√
|
|
SQZ14-RS
|
14
|
M14×1.5
|
19
|
38
|
22
|
23.5
|
17
|
103
|
45
|
8
|
25
|
20
|
25
|
36
|
22
|
11
|
15
|
0.27
|
√
|
|
SQZ14-RS-1
|
14
|
M14×2
|
19
|
38
|
28
|
23.5
|
17
|
109
|
45
|
8
|
25
|
20
|
25
|
36
|
22
|
11
|
15
|
0.27
|
√
|
|
SQZ16-RS
|
16
|
M16×1.5
|
22
|
44
|
23
|
25.5
|
19
|
112
|
50
|
8
|
27
|
22
|
27
|
40
|
25
|
11
|
15
|
0.36
|
√
|
|
SQZ16-RS-1
|
16
|
M16×2
|
22
|
44
|
29
|
25.5
|
19
|
118
|
50
|
8
|
27
|
22
|
27
|
40
|
25
|
11
|
15
|
0.36
|
√
|
|
SQZ18-RS
|
18
|
M18×1.5
|
23
|
45
|
25
|
31
|
20
|
130.5
|
58
|
10
|
32
|
25
|
31
|
45
|
27
|
11
|
19
|
0.54
|
○
|
|
SQZ20-RS
|
20
|
M20×1.5
|
27
|
50
|
25
|
29
|
24
|
133
|
63
|
10
|
38
|
27.5
|
34
|
45
|
30
|
7.5
|
19
|
0.57
|
○
|
|
SQZ22-RS
|
22
|
M22×1.5
|
27
|
52
|
26
|
33
|
24
|
145
|
70
|
12
|
43
|
30
|
37
|
50
|
32
|
7.5
|
23
|
0.76
|
○
|
