ROD ENDS
ROD ENDS(NYLON) > XF-3...XFL-12
ROD ENDS
ROD ENDS

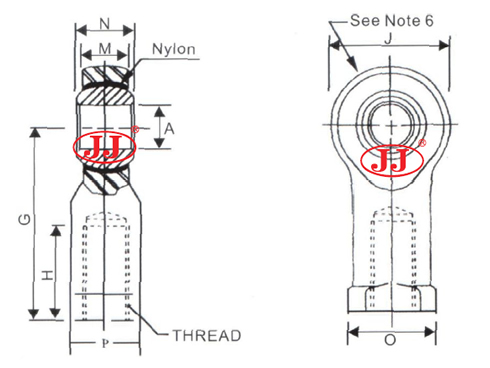

model Dimensions(mm) inventory
Thread
Class 2B 		A
+0.0025
-0.0005 		B
Ref 		G ± 0.030 H ± 0.060 J ± 0.015 M
Ref 		N ± 0.050 O ± 0.079 P
Ref 		Max Radial Static load (lbs)
XF-3 10-32 0.1900 0.430 1.062 0.580 0.625 0.250 0.312 0.406 0.312 900 ○
XFL-3 10-32-LH 0.1900 0.430 1.062 0.580 0.625 0.250 0.312 0.406 0.312 900 ○
XF-4 1/4-28 0.2500 0.510 1.312 0.750 0.750 0.281 0.375 0.468 0.375 1800 ○
XFL-4 1/4-28-LH 0.2500 0.510 1.312 0.750 0.750 0.281 0.375 0.468 0.375 1800 ○
XF-5 5/16-24 0.3125 0.618 1.375 0.750 0.875 0.344 0.437 0.500 0.437 2900 ○
XFL-5 5/16-24-LH 0.3125 0.618 1.375 0.750 0.875 0.344 0.437 0.500 0.437 2900 ○
XF-6 3/8-24 0.3750 0.713 1.625 0.937 1.000 0.406 0.500 0.687 0.562 4100 ○
XFL-6 3/8-24-LH 0.3750 0.713 1.625 0.937 1.000 0.406 0.500 0.687 0.562 4100 ○
XF-7 7/16-20 0.4375 0.806 1.812 1.062 1.125 0.437 0.562 0.750 0.625 5300 ○
XFL-7 7/16-20-LH 0.4375 0.806 1.812 1.062 1.125 0.437 0.562 0.750 0.625 5300 ○
XF-8 1/2-20 0.5000 0.931 2.125 1.187 1.335 0.500 0.625 0.875 0.750 7100 ○
XFL-8 1/2-20-LH 0.5000 0.931 2.125 1.187 1.335 0.500 0.625 0.875 0.750 7100 ○
XF-10 5/8-18 0.6250 1.098 2.500 1.515 1.500 0.562 0.750 1.000 0.875 8300 ○
XFL-10 5/8-18-LH 0.6250 1.098 2.500 1.515 1.500 0.562 0.750 1.000 0.875 8300 ○
XF-12 3/4-16 0.7500 1.336 2.875 1.750 1.750 0.687 0.875 1.125 1.000 12000 ○
XFL-12 3/4-16-LH 0.7500 1.336 2.875 1.750 1.750 0.687 0.875 1.125 1.000 12000 ○
