HYDRAULIC ROD ENDS

model	Dimensions(mm)														Load ratings kN		inventory

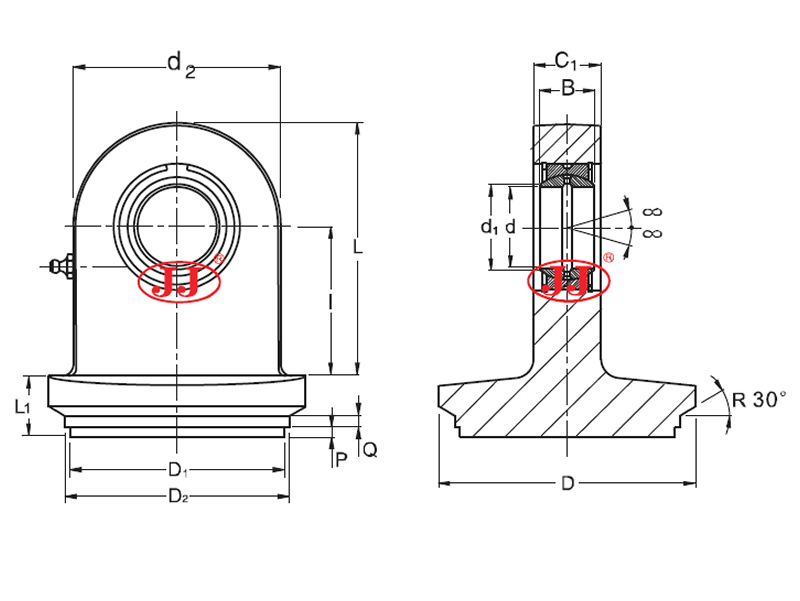

model	P	Q	d	B	d₁	I	d₂	C₁	L	L₁ max	D max	D₁	A ° ≈	D₂	Dynamic Load Ratings kN/Dynamic	Static Load Ratings kN/Static	inventory
TS20NF	2	1.5	20	16	24.1	38	50	19	63	13	60	50	9	53	30	67	√
TS25NF	2	1.5	25	20	29.3	45	55	23	72.5	14	73	63	7	66	48	69.5	√
TS30NF	2	1.5	30	22	34.2	51	65	28	83.5	15	95	80	6	83	62	118	√
TS35NF	2	1.5	35	25	39.7	61	83	30	102.5	15	105	90	6	93	80	196	√
TS40NF	2	1.5	40	28	45	69	100	35	119	16	115	100	7	103	100	305	√
TS50NF	2	1.5	50	35	56	88	123	40	149.5	19	145	125	6	128	156	441	√
TS60NF	2	1.5	60	44	66.8	100	140	50	170	21	170	150	6	153	245	570	√
