HYDRAULIC ROD ENDS

HYDRAULIC ROD ENDS > GIHO-K12DO...GIHO-K100DO

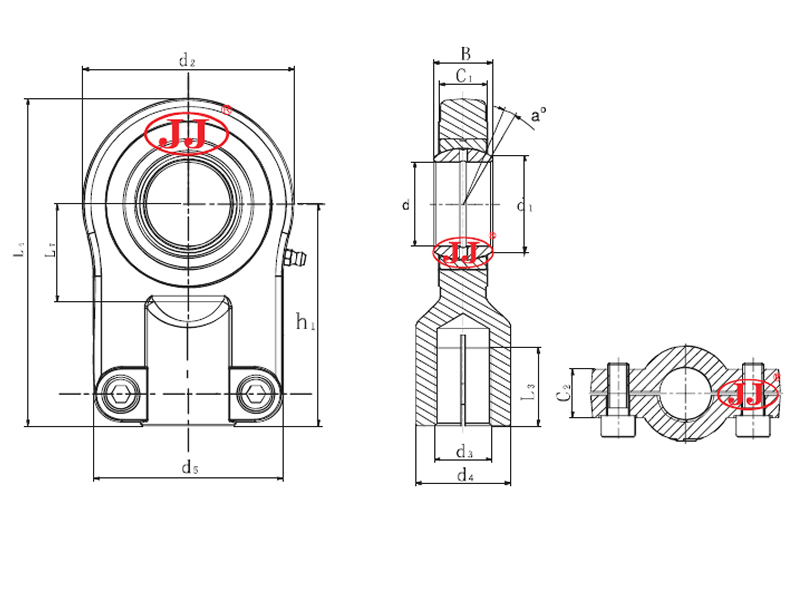

model	Dimensions(mm)														Load ratings kN		Weight ≈ kg	inventory
model	D tolerance	B₀ 0.12	d₁	C₁ max	d₂ max	G 6H	h₁	L₃ min	L₄ max	C₂	d₄	d₅	L₇	A ° ≈	Dynamic Load Ratings kN/Dynamic	Static Load Ratings kN/Static	Weight ≈ kg	inventory
GIHO-K12 DO*	12 -0.008	10	15	8	35	M10×1.25	42	15	59.5	13	17	40	16	11	10.8	17	0.12	√
GIHO-K16 DO	16 -0.008	14	20.7	11	45	M12×1.25	48	17	70.5	13	21	45	20	10	21.1	28.5	0.22	√
GIHO-K20 DO	20 -0.01	16	24.2	13	55	M14×1.5	58	19	85.5	17	25	55	25	9	30	42.5	0.43	√
GIHO-K25 DO	25 -0.01	20	29.3	17	65	M16×1.5	68	23	100.5	17	30	62	30	7	48.0	67	0.67	√
GIHO-K30 DO	30 -0.01	22	34.2	19	80	M20×1.5	85	29	125	19	36	77	35	6	62.0	108	1.25	√
GIHO-K40 DO	40 -0.012	28	45.0	23	100	M27×2.0	105	37	155	23	45	90	45	7	100	156	2.16	√
GIHO-K50 DO	50 -0.012	35	55.9	30	120	M33×2.0	130	46	190	30	55	105	58	6	156	245	3.90	√
GIHO-K60 DO	60 -0.015	44	66.8	38	160	M42×2.0	150	57	230	38	68	134	68	6	245	380	7.15	√
GIHO-K80 DO	80 -0.015	55	89.4	47	205	M48×2.0	185	64	287.5	47	90	156	82	6	400	585	15.0	√
GIHO-K100 DO	100 -0.015	70	109.5	55	240	M64×3.0	240	86	360	55	110	190	116	7	610	865	27.3	√
