ROD ENDS

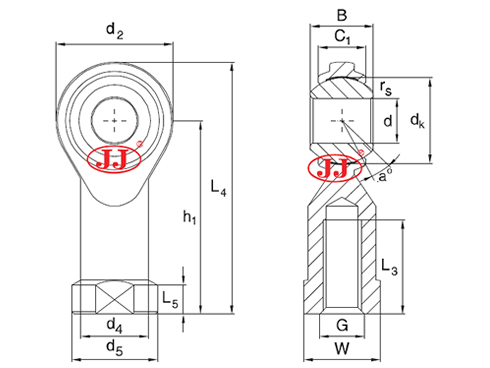

model	Dimensions(mm)															Rotational torque Nmmax	Load ratings kN		Radial clearance (mm)	Weight ≈ kg	inventory
model	Tolerance H7	B₀ 0.12	d₁	C₁ max	d₂ max	G 6H	h₁	L₃ min	L₄ max	L₅	W	d₄	d₅	r_s min	A_°≈	Rotational torque Nmmax	Dynamic Load Ratings kN/Dynamic	Static Load Ratings kN/Static	Radial clearance (mm)	Weight ≈ kg	inventory
NHS3T	3	6	6.8	4.5	12	M3×0.5	21	10	27	3	5.5	5	8	0.2	11	0.2～3.5	2480	3500	0～0.032	10	√
NHS4T	4	7	7.6	5.25	14	M4×0.7	24	12	31	4	8	8	9.5	0.2	12	0.2～3.5	3260	4950	0～0.032	12	√
NHS5T	5	8	7.7	6	16	M5×0.8	27	12.5	35	4	9	9	12	0.2	12	0.2～3.5	4010	6540	0～0.032	16	√
NHS6T	6	9	9	6.75	18	M6×1	30	13.5	39	5	11	10	13	0.2	10	0.2～3.5	4940	8410	0～0.032	25	√
NHS8T	8	12	10.4	9	22	M8×1.25	36	16	47	5	14	12.5	16	0.2	12	0.2～3.5	7760	14000	0～0.032	43	√
NHS10T	10	14	12.9	10.5	26	M10×1.5	43	19.5	56	6.5	17	15	19	0.2	12	0.2～3.5	10500	19600	0～0.032	72	√
NHS12T	12	16	15.4	12	30	M12×1.75	50	24	65	6.5	19	17.5	22	0.2	12	0.2～3.5	13700	26200	0～0.032	107	√
NHS14T	14	19	16.9	13.5	34	M14×2	57	27	74	8	22	20	25	0.2	14	0.2～3.5	17200	33600	0～0.04	160	√
NHS16T	16	21	19.4	15	38	M16×2	64	33	83	8	22	22	27	0.2	13	0.2～3.5	21100	42000	0～0.04	210	√
NHS18T	18	23	21.9	17	42	M18×1.5	71	36	92	10	27	25	31	0.2	14	0.2～3.5	25100	51400	0～0.04	295	√
NHS20T	20	25	24.4	18	46	M20×1.5	77	40	100	10	30	27.5	34	0.2	12	0.2～3.5	30000	61600	0～0.04	380	√
NHS22T	22	28	25.8	20	50	M22×1.5	84	41	109	12	32	30	37	0.2	13	0.2～3.5	36400	74700	0～0.05	490	√
NHS25T	25	31	29.6	22	56	M24×2	94	48	122	12	36	33.5	42	0.2	14	0.2～3.5	37000	77000	0～0.05	870	√
NHS28T	28	35	32.3	24	66	M27×2	103	56	143	15	41	40	40	0.2	15	0.2～3.5	43000	85000	0～0.05	1180	√
NHS30T	30	37	34.8	25	70	M30×2	110	56	145	15	41	40	50	0.2	16	0.2～3.5	55000	101000	0～0.05	1450	√
