ROD ENDS

ROD ENDS(maintenance-free) > SA5T/K...SA50T/K

ROD ENDS

ROD ENDS

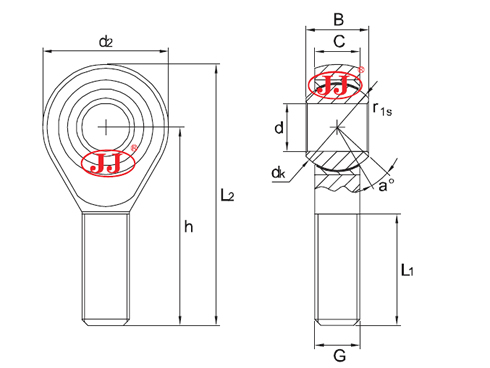

Model No.	Dimensions(mm)											Rotational torque Nm max	Load ratings kN		Radial clearance(mm)	Weight ≈kg	Inventory
Model No.	Tolerance H7	B₀ -0.12	d_k	C₁ max	d₂ max	G 6g	h	L₁ min	L₂ max	r_1s min	a_° ≈	Rotational torque Nm max	Load ratings kN/Dynamic	Load ratings kN/Static	Radial clearance(mm)	Weight ≈kg	Inventory
SA5T/K	5	8	11.112	6	18	M5	33	19	42	0.3	13	0.2	5.7	6.0	0～0.032	0.013	√
SA6T/K	6	9	12.7	6.75	20	M6	36	21	46	0.3	13	0.25	7.2	7.65	0～0.032	0.015	√
SA8T/K	8	12	15.88	9	24	M8	42	25	54	0.3	14	0.3	11.6	12.9	0～0.032	0.034	√
SA10T/K	10	14	19.05	10.5	28	M10	48	28	62	0.6	13	0.4	145	18	0～0.032	0.071	√
SA12T/K	12	16	22.23	12	32	M12	54	32	70	0.6	13	0.5	17	24	0～0.032	0.110	√
SA14T/K	14	19	25.4	13.5	36	M14	60	36	78	0.6	16	0.6	24	31	0～0.04	0.130	√
SA16T/K	16	21	28.58	15	42	M16	66	37	87	0.6	15	0.7	285	39	0～0.04	0.220	√
SA18T/K	18	23	31.75	16.5	44	M18×1.5	72	41	94	0.6	15	0.8	425	475	0～0.04	0.290	√
SA20T/K	20	25	34.93	18	50	M20×1.5	78	45	103	0.6	14	1.0	425	57	0～0.04	0.360	√
SA22T/K	22	28	38.1	20	54	M22×1.5	84	48	111	0.6	15	1.2	57	68	0～0.05	0.490	√
SA25T/K	25	31	42.86	22	60	M24×2	94	55	124	0.6	15	1.2	68	85	0～0.05	0.650	√
SA28T/K	28	35	47.63	24	66	M27×2	103	62	136	0.6	15	1.2	86	107	0～0.05	0.870	√
SA30T/K	30	37	50.8	25	70	M30×2	110	66	145	0.6	17	1.2	88	114	0～0.05	1.100	√
SA35T/K	35	43	57.1	28	81	M36×2	140	85	180.5	0.6	16	1.2	101	206	0～0.05	1.640	√
SA40T/K	40	49	66.6	33	91	M42×2	150	90	195.5	0.6	17	1.2	124	286	0～0.05	2.400	√
SA50T/K	50	60	82.5	45	117	M48×2	185	105	243.5	0.6	12	1.2	308	485	0～0.05	4.800	○
