ROD ENDS

ROD ENDS(maintenance-free) > SA5C...SA80ET2RS

ROD ENDS

ROD ENDS

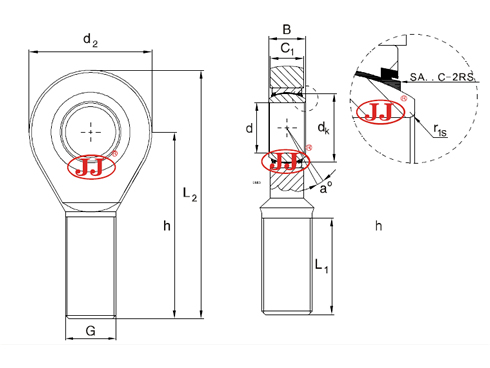

Model No.	Model No.	Dimensions(mm)											Load ratings kN		Radial clearance(mm)	Weight ≈kg	Inventory
Model No.	Model No.	d Tolerances	B₀ -0.12	d_k	C₁ max	d₂ max	G 6g	h	L₁ min	L₂ max	r_1s min	a_° ≈	Load ratings kN/Dynamic	Load ratings kN/Static	Radial clearance(mm)	Weight ≈kg	Inventory
SA5C	-	5 -0.008	6	10	4.5	21	M5	36	16	46.5	0.3	13	3.6	8.1	0～0.032	0.011	√
SA6C	-	6 -0.008	6	10	4.5	21	M6	36	16	46.5	0.3	13	3.6	8.1	0～0.032	0.013	√
SA8C	-	8 -0.008	8	13	6.5	24	M8	42	21	54	0.3	15	53	12.9	0～0.032	0.026	√
SA10C	-	10 -0.008	9	16	7.5	29	M10	48	26	62.5	0.3	12	8.6	17.6	0～0.032	0.044	√
SA12C	-	12 -0.008	10	18	8.5	34	M12	54	28	71	0.3	10	11	24.5	0～0.032	0.066	√
SA15C	SA15ET2RS	12 -0.008	12	22	10.5	40	M14	63	34	83	0.3	8	18	36	0～0.04	0.120	√
SA17C	SA17ET2RS	17 -0.008	14	25	11.5	46	M16	69	36	92	0.3	10	22	45	0～0.04	0.170	√
SA20C	SA20ET2RS	20 -0.01	16	29	13.5	53	M20×1.5	78	43	104.5	0.3	9	31	60	0～0.04	0.280	√
SA25C	SA25ET2RS	25 -0.01	20	35.5	18	64	M24×2	94	53	126	0.6	7	51	83	0～0.05	0.510	√
SA30C	SA30ET2RS	30 -0.01	22	40.7	20	73	M30×2	110	65	146.5	0.6	6	65	110	0～0.05	0.840	√
-	SA35ET2RS	35 -0.012	25	47	22	82	M36×3	140	82	181	0.6	6	112	146	0～0.05	1.400	√
-	SA40ET2RS	40 -0.012	28	53	24	92	M39×3	150	86	196	0.6	7	140	180	0～0.06	1.800	√
-	SA45ET2RS	45 -0.012	32	60	28	102	M42×3	163	92	214	0.6	7	180	240	0～0.06	2.500	√
-	SA50ET2RS	50 -0.012	35	66	31	112	M45×3	185	104	241	0.6	6	220	290	0～0.06	3.600	√
-	SA60ET2RS	60 -0.015	44	80	39	135	M52×3	210	115	277.5	1	6	345	450	0～0.06	5.700	√
-	SA70ET2RS	70 -0.015	49	92	43	160	M56×4	235	125	315	1	6	440	610	0～0.072	7.700	√
-	SA80ET2RS	80 -0.015	55	105	48	180	M64×4	270	140	360	1	6	567	750	0～0.072	12	√
