ROD ENDS

ROD ENDS(maintenance-free) > SI5C..SI80ET2RS

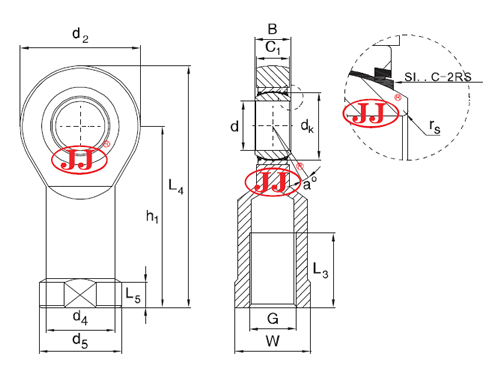

Model No.	Model No.	Dimensions(mm)															Load ratings kN		Radial clearance(mm)	Weight ≈kg	Inventory
Model No.	Model No.	d Tolerances	B₀ -0.12	d_k	C₁ max	d₂ max	G 6H	h₁	L₃ min	L₄ max	L₅	W	d₄	d₅	r_s min	a_° ≈	Load ratings kN/Dynamic	Load ratings kN/Static	Radial clearance(mm)	Weight ≈kg	Inventory
SI5C	-	5 -0.008	6	10	4.5	21	M5	30	11	40.5	5	10	10	13	0.3	13	3.6	8.1	0～0.032	0.016	√
SI6C	-	6 -0.008	6	10	4.5	21	M6	30	11	40.5	5	11	11	13	0.3	13	3.6	8.1	0～0.032	0.017	√
SI8C	-	8 -0.008	8	13	6.5	24	M8	36	15	48	5	13	13	16	0.3	15	5.8	123	0～0.032	0.035	√
SI10C	-	10 -0.008	9	16	7.5	29	M10	43	15	57.5	6.5	16	16	19	0.3	12	8.6	17.6	0～0.032	0.061	√
SI12C	-	12 -0.008	10	18	8.5	34	M12	50	18	67	7	18	19	22	0.3	10	11	24.5	0～0.032	0.096	√
SI15C	SI15ET2RS	12 -0.008	12	22	10.5	40	M14	61	21	81	8	21	21	26	0.3	8	18	36	0～0.04	0.160	√
SI17C	SI17ET2RS	17 -0.008	14	25	11.5	46	M16	67	24	90	10	27	25	29	0.3	10	22	45	0～0.04	0.230	√
SI20C	SI20ET2RS	20 -0.01	16	29	13.5	53	M20×1.5	77	30	103.5	10	30	28	34	0.3	9	31	60	0～0.04	0.320	√
SI25C	SI25ET2RS	25 -0.01	20	35.5	18	64	M24×2	94	36	126	12	36	35	42	0.6	7	51	83	0～0.05	0.620	√
SI30C	SI30ET2RS	30 -0.01	22	40.7	20	73	M30×2	110	45	146.5	15	46	42	50	0.6	6	65	110	0～0.05	0.970	√
-	SI35ET2RS	35 -0.012	25	47	22	82	M36×3	125	60	166	15	55	48	58	0.6	6	112	146	0～0.05	1.500	√
-	SI40ET2RS	40 -0.012	28	53	24	92	M39×3	142	65	188	18	60	52	65	0.6	7	140	180	0～0.06	2.100	√
-	SI45ET2RS	45 -0.012	32	60	28	102	M42×3	145	65	196	20	65	58	70	0.6	7	180	240	0～0.06	2.700	√
-	SI50ET2RS	50 -0.012	35	66	31	112	M45×3	160	68	216	20	70	62	75	0.6	6	220	290	0～0.06	3.500	√
-	SI60ET2RS	60 -0.015	44	80	39	135	M52×3	175	70	242.5	20	80	70	88	1	6	345	450	0～0.06	5.600	√
-	SI70ET2RS	70 -0.015	49	92	43	160	M56×4	200	80	280	20	85	80	98	1	6	440	610	0～0.072	8.300	√
-	SI80ET2RS	80 -0.015	55	105	48	180	M64×4	230	85	320	25	95	95	110	1	6	567	750	0～0.072	13	√
