ROD ENDS
|
Model No.
|

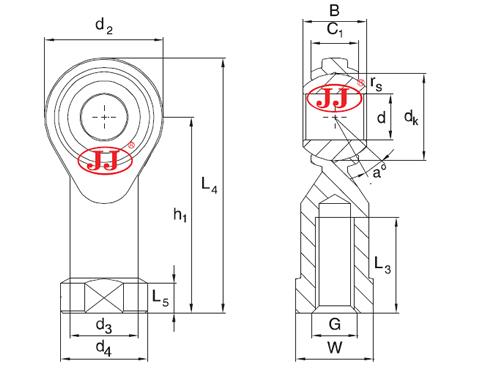

Dimensions(mm)
|
Load ratings kN
|
Radial clearance(mm)
|
Weight≈kg
|
Inventory
|
| d Tolerances |
B |
dk |
C1max |
d2max |
G2B |
h1 |
L3min |
L4max |
L5 |
W |
d3 |
d4 |
rsmin |
a°≈ |
Load ratings kN/Dynamic |
Load ratings kN/Static |
|
SIZJ4
|
4.83
|
7.92
|
11.1
|
5.94
|
15.88
|
10-32
|
26.97
|
12.70
|
34.93
|
4.75
|
7.92
|
7.54
|
10.31
|
0.3
|
10
|
3.6
|
6.8
|
0.023～0.068
|
0.018
|
○
|
|
SIZJ4
|
0.19
|
0.312
|
0.437
|
0.234
|
0.625
|
10-32
|
1.062
|
0.5
|
1.375
|
0.187
|
0.312
|
0.297
|
0.406
|
0.012
|
10
|
3.6
|
6.8
|
0.023～0.068
|
0.018
|
○
|
|
SIZJ6
|
6.35
|
9.53
|
12.7
|
6.35
|
19.05
|
1/4-28
|
33.32
|
15.88
|
42.85
|
4.75
|
9.53
|
9.15
|
11.91
|
0.3
|
13.5
|
5.4
|
9.6
|
0.023～0.068
|
0.023
|
○
|
|
SIZJ6
|
0.25
|
0.375
|
0.5
|
0.25
|
0.75
|
1/4-28
|
1.312
|
0.625
|
1.687
|
0.187
|
0.375
|
0.36
|
0.469
|
0.012
|
13.5
|
5.4
|
9.6
|
0.023～0.068
|
0.023
|
○
|
|
SIZJ7
|
7.94
|
11.10
|
15.88
|
7.92
|
22.23
|
5/16-24
|
34.93
|
15.B8
|
46.02
|
4.75
|
11.1
|
10.72
|
12.70
|
0.3
|
11
|
8.5
|
12
|
0.023～0.068
|
0.036
|
○
|
|
SIZJ7
|
0.3125
|
0.437
|
0.625
|
0.312
|
0.875
|
5/16-24
|
1.375
|
0.625
|
1.812
|
0.187
|
0.437
|
0.422
|
0.5
|
0.012
|
11
|
8.5
|
12
|
0.023～0.068
|
0.036
|
○
|
|
SIZJ9
|
9.53
|
12.70
|
18.26
|
9.12
|
25.40
|
3/8-24
|
41.28
|
19.05
|
53.98
|
6.35
|
14.27
|
13.89
|
17.45
|
0.6
|
11
|
11
|
16
|
0.023～0.068
|
0.059
|
○
|
|
SIZJ9
|
0.375
|
0.5
|
0.719
|
0.359
|
1
|
3/8-24
|
1.625
|
0.75
|
2.125
|
0.25
|
0.562
|
0.547
|
0.687
|
0.024
|
11
|
11
|
16
|
0.023～0.068
|
0.059
|
○
|
|
SIZJ11
|
11.11
|
14.27
|
20.62
|
10.31
|
28.58
|
7/16-20
|
46.02
|
22.23
|
60.33
|
6.35
|
15.88
|
15.49
|
19.05
|
0.6
|
10.5
|
14
|
21
|
0.023～0.068
|
0.082
|
○
|
|
SIZJ11
|
0.4375
|
0.562
|
0.812
|
0.406
|
1.125
|
7/16-20
|
1.612
|
0.875
|
2.375
|
0.25
|
0.625
|
0.61
|
0.75
|
0.024
|
10.5
|
14
|
21
|
0.023～0.068
|
0.082
|
○
|
|
SIZJ12
|
12.7
|
15.88
|
23.81
|
11.50
|
33.32
|
1/2-20
|
53.98
|
25.40
|
70.64
|
6.35
|
19.05
|
18.67
|
22.23
|
0.6
|
10
|
18
|
28
|
0.023～0.068
|
0.132
|
○
|
|
SIZJ12
|
0.5
|
0.625
|
0.937
|
0.453
|
1.312
|
1/2-20
|
2.125
|
1
|
2.781
|
0.25
|
0.75
|
0.735
|
0.875
|
0.024
|
10
|
18
|
28
|
0.023～0.068
|
0.132
|
○
|
|
SIZJ15
|
15.86
|
19.05
|
28.58
|
12.29
|
38.10
|
5/8-18
|
63.50
|
31.75
|
82.55
|
7.92
|
22.23
|
21.84
|
25.40
|
0.6
|
13
|
23
|
29
|
0.023～0.068
|
0.195
|
○
|
|
SIZJ15
|
0.625
|
0.75
|
1.125
|
0.484
|
1.5
|
5/8-18
|
2.5
|
1.25
|
3.25
|
0.312
|
0.875
|
0.86
|
1
|
0.024
|
13
|
23
|
29
|
0.023～0.068
|
0.195
|
○
|
|
SIZJ19
|
19.05
|
22.23
|
33.32
|
15.06
|
44.45
|
3/4-16
|
73.03
|
34.93
|
95.25
|
7.92
|
25.4
|
25.02
|
28.5B
|
0.6
|
12
|
34
|
44
|
0.023～0.068
|
0.295
|
○
|
|
SIZJ19
|
0.75
|
0.875
|
1.312
|
0.593
|
1.75
|
3/4-16
|
2.B75
|
1.375
|
3.75
|
0.312
|
1
|
0.9B5
|
1.125
|
0.024
|
12
|
34
|
44
|
0.023～0.068
|
0.295
|
○
|
